Energy Saver – Read Room Number Only

Energy Saver – Read Room Number Only


Quick Overview

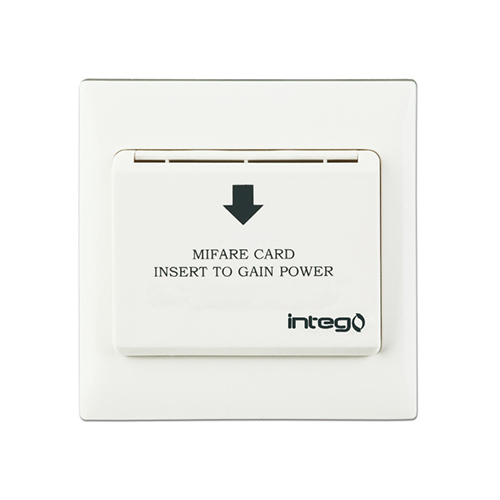

An energy saver switch that only energizes when a keycard programmed with the same room number as the switch is inserted into the slot of the switch. The switch will turn off upon the removal of the card thus saving energy.


Specification

Working Voltage VAC 200V-240V, 50/60Hz
Load Current 30A
Self-Consumption Power Waste < 3W
Lifetime of Contact of Relay > 100,000 times at 220V 20A
Delay Time After Power Off 8-15s
Working Temperature -10ºC ~ 60ºC
Working Humidity 10~95%RH
Environment for Transportation and Storage -20ºC ~ 80ºC
Exterior Dimension W86 x H86 x D42 mm
Installation Level standard 86 base box

Features

  • Energizes when only detect the keycard containing the correct room number.
  • Delay time before power off.
