Energy Saver – Read Mifare Card Only

Energy Saver – Read Mifare Card Only

Quick Overview

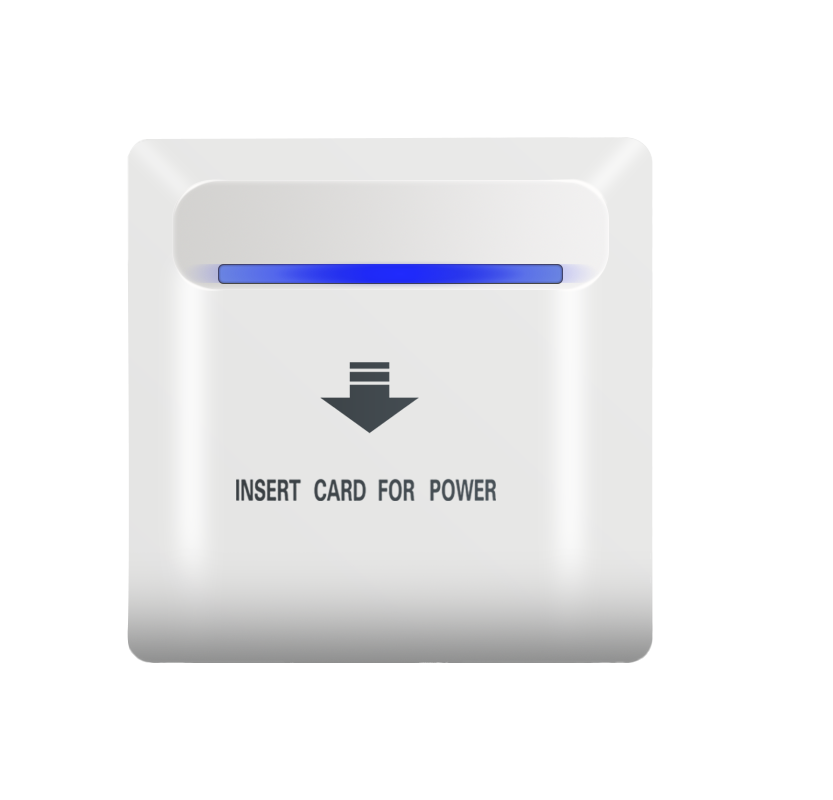

An energy saver switch that only energizes when a keycard of the type Mifare is inserted into the slot of the switch. The switch will turn off upon the removal of the card thus saving energy.


Working Voltage VAC 200V-240V, 50/60Hz
Load Current 30A
Self-Consumption Power Waste < 3W
Lifetime of Contact of Relay > 100,000 times at 220V 20A
Delay Time After Power Off 8-15s
Working Temperature -10ºC ~ 60ºC
Working Humidity 10~95%RH
Environment for Transportation and Storage -20ºC ~ 80ºC
Exterior Dimension W86 x H86 x D42 mm
Installation Level standard 86 base box


  • Energizes when only detect Mifare card
  • Delay time before power off
