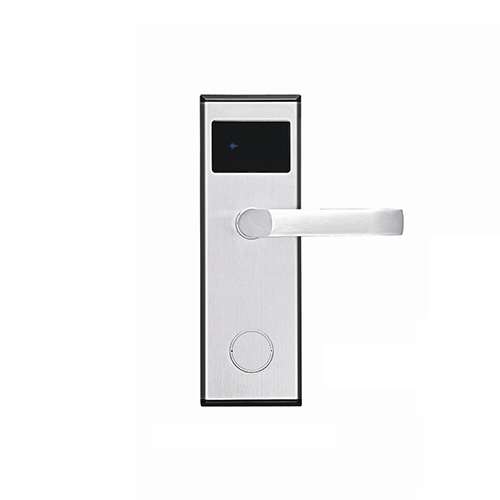

Intego Hotel Lock – ITG-EL800-M03/MB

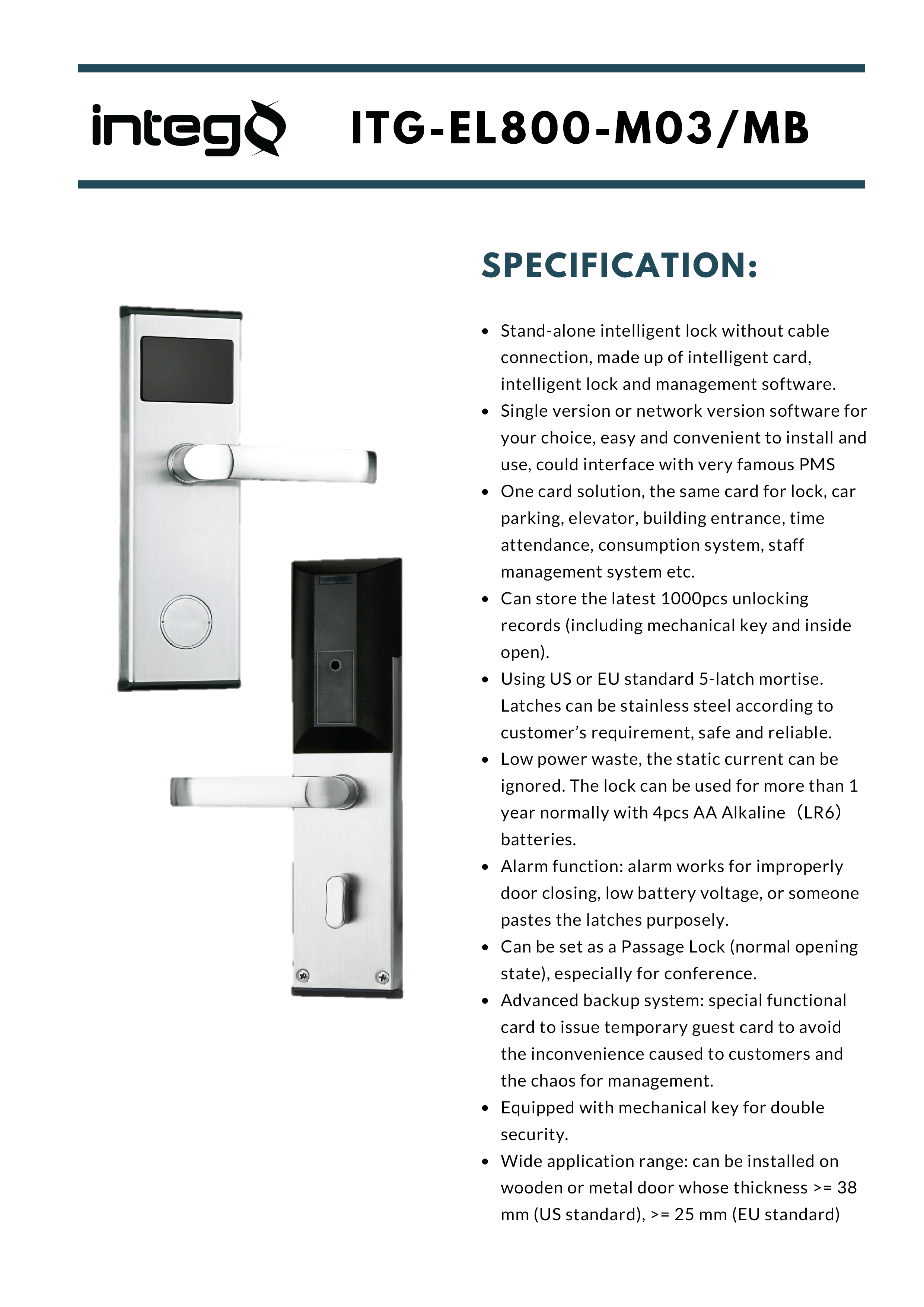

SPECIFICATION:

  • Stand-alone intelligent lock without cable connection, made up of intelligent card, intelligent lock and management software.
  • Single version or network version software for your choice, easy and convenient to install and use, could interface with very famous PMS.
  • One card solution, the same card for lock, car parking, elevator, building entrance, time attendance, consumption system, staff management system etc.
  • Can store the latest 1000pcs unlocking records (including mechanical key and inside open).
  • Using US or EU standard 5-latch mortise. Latches can be stainless steel according to customer’s requirement, safe and reliable. Low power waste, the static current can be ignored. The lock can be used for more than 1 year normally with 4pcs AA Alkaline LR6 batteries.
  • Alarm function: alarm works for improperly door closing, low battery voltage, or someone pastes the latches purposely.
  • Can be set as a Passage Lock (normal opening state), especially for conference.
  • Advanced backup system: special functional card to issue temporary guest card to avoid the inconvenience caused to customers and the chaos for management.
  • Equipped with mechanical key for double security.
  • Wide application range: can be installed on wooden or metal door whose thickness >= 38 mm (US standard), >= 25 mm (EU standard)

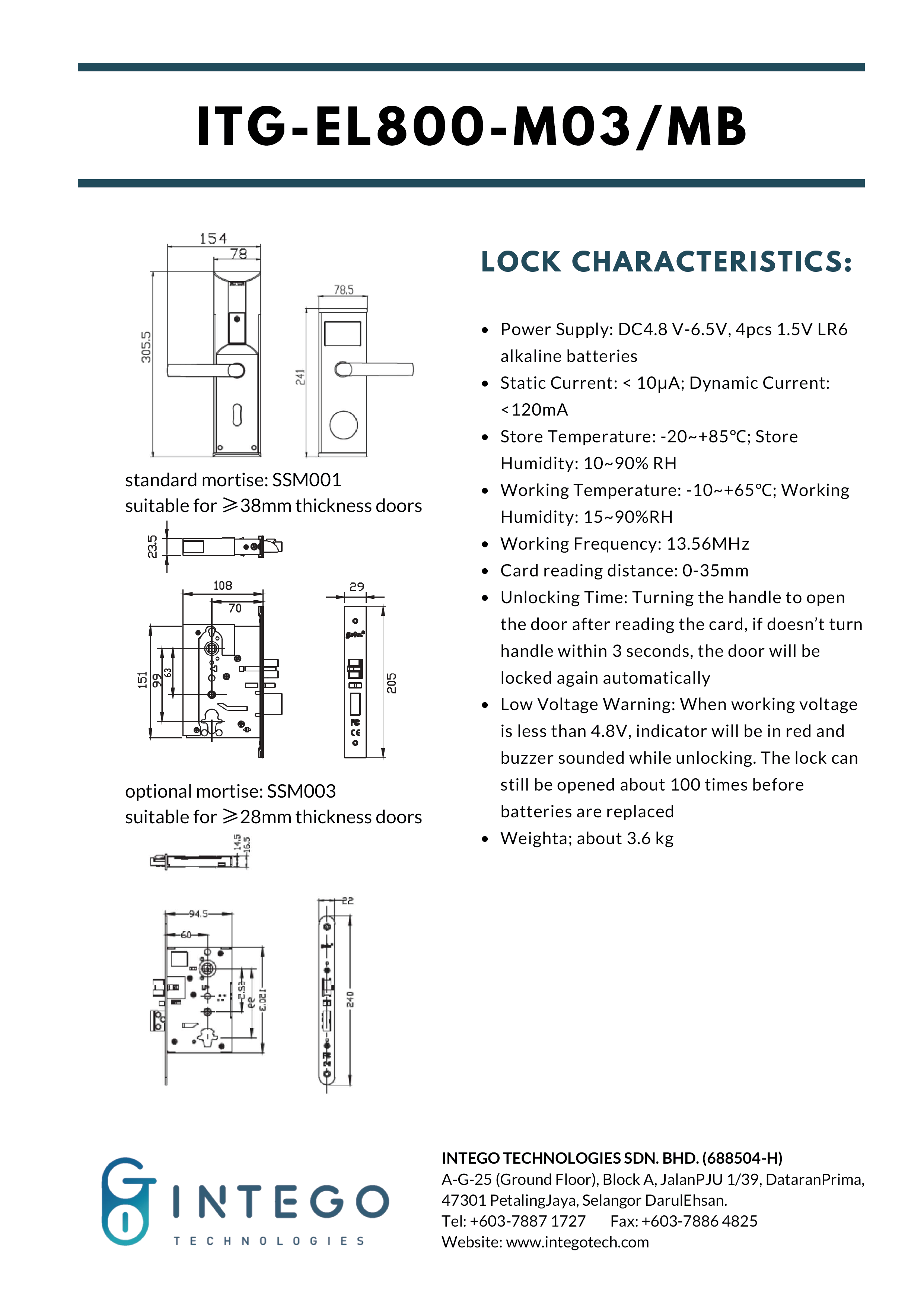

LOCK CHARACTERISTICS:

  • Power Supply: DC4.8 V-6.5V, 4pcs 1.5V LR6 alkaline batteries
  • Static Current: < 10μA; Dynamic Current: <120mA
  • Store Temperature: -20~+85°C; Store Humidity: 10~90% RH
  • Working Temperature: -10~+65°C; Working Humidity: 15~90%RH
  • Working Frequency: 13.56MHz
  • Card reading distance: 0-35mm
  • Unlocking Time: Turning the handle to open the door after reading the card, if doesn’t turn handle within 3 seconds, the door will be locked again automatically
  • Low Voltage Warning: When working voltage is less than 4.8V, indicator will be in red and buzzer sounded while unlocking. The lock can still be opened about 100 times before batteries are replaced
  • Weighta; about 3.6 kg
