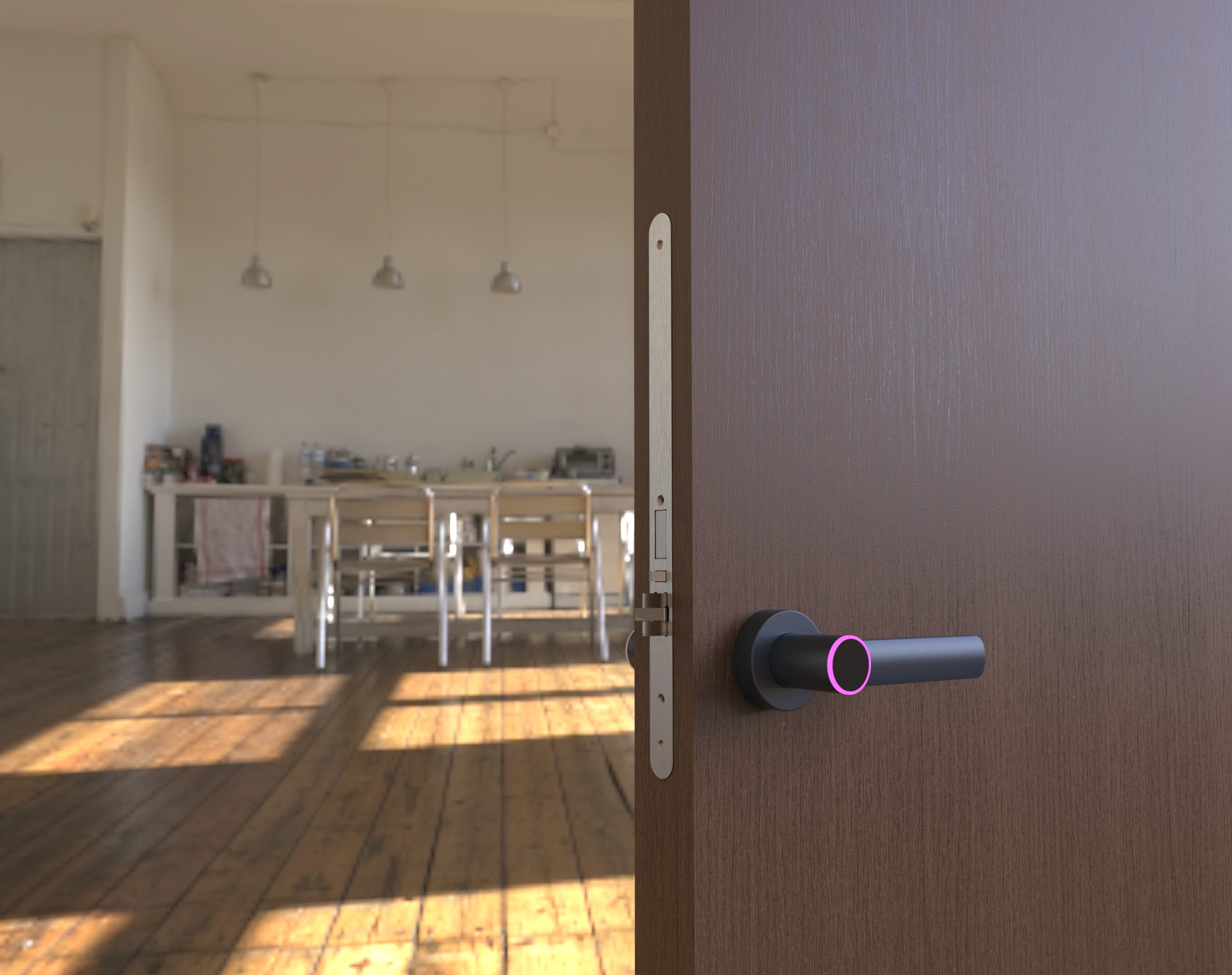

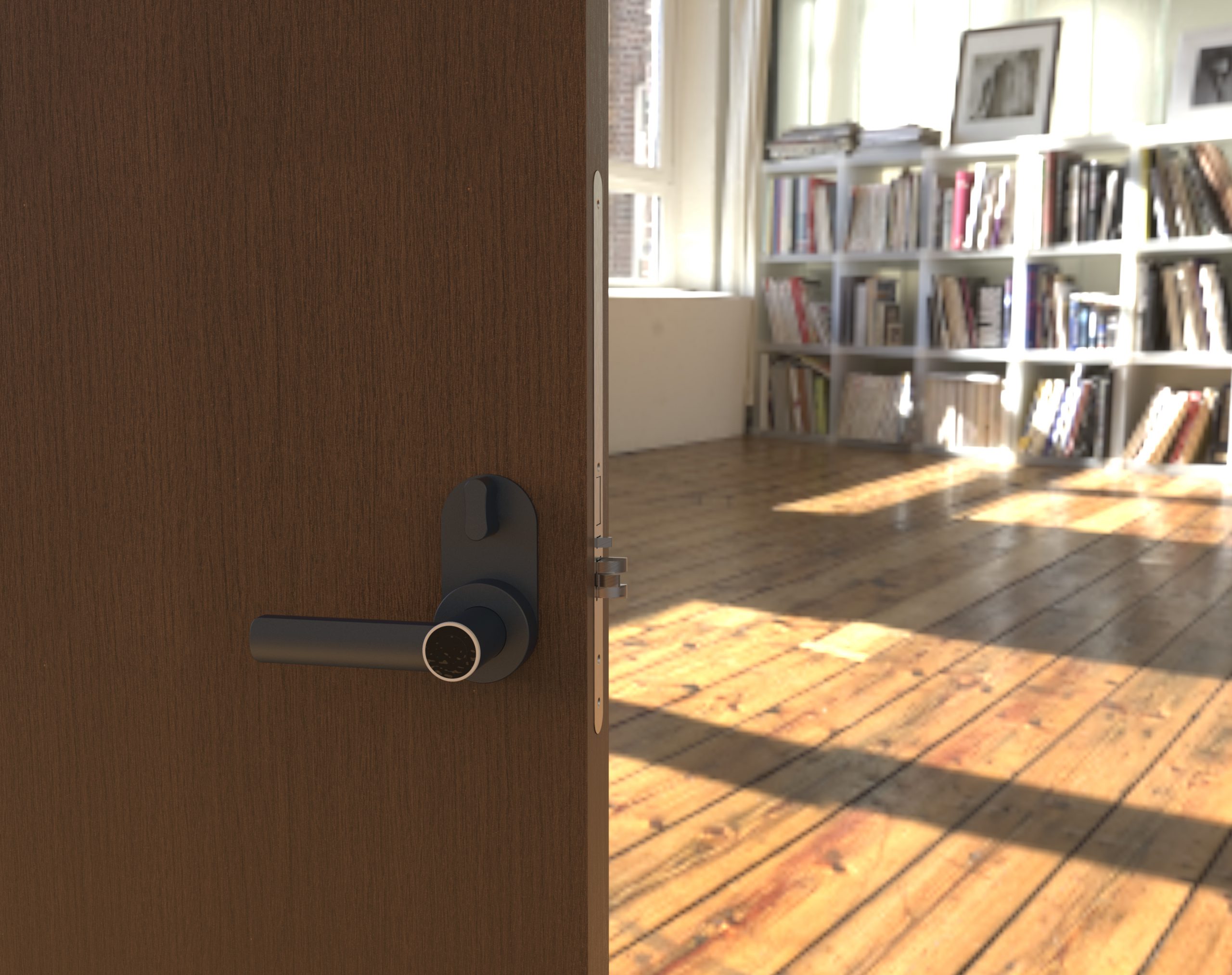

Mortise lock, Main board and battery box are inside the door
With various colors for your choice
Material: Zinc Alloy handle
Optional finishing: CCR, PVD, GB, CR, SPVD, AB, AC
Workable mortise: M001, SS M003

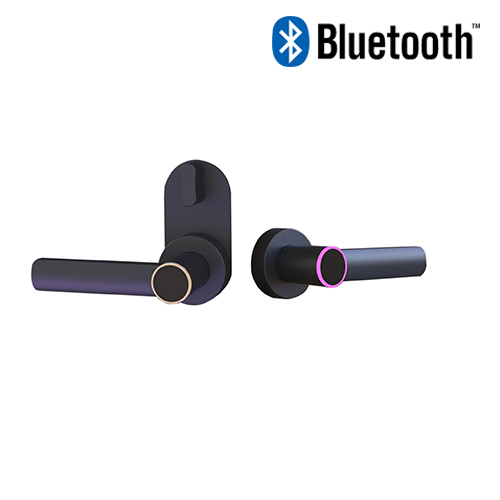

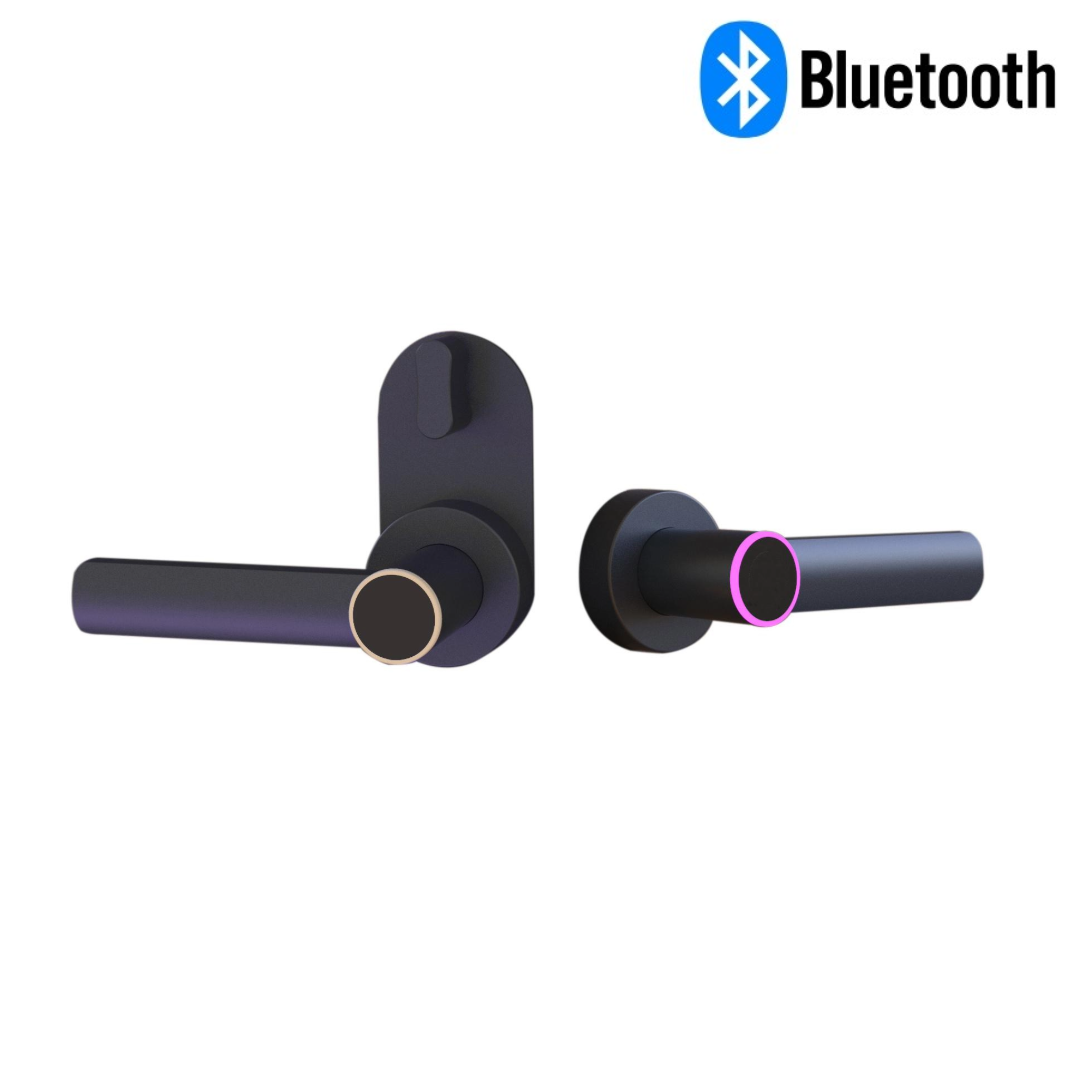

With BLE version locks for your choice, can be opened by BLE mobile phone.
Could check opening records of some management cards, not only lock’s records (lock write back opening records into cards).
Can store the latest 1000pcs unlocking records of lock, including card’s, mechanical key’s and inside opening’s.
Could write breakfast ticket into room card.
Could translate the software to use your local language.
With Public Door and Area Card function. One guest card could be set to open maximal 7 guest rooms.
Hand terminal can download and save all opening records of 500 rooms.
Use Information Card (MF1 4k card) can get the battery status from lock.
Single version or network version software for your choice, easy and convenient to install and use, could interface with very famous PMS, including Fidelio, Opera.
One card solution, the same card issued one time in lock software could be used to open door lock, door access reader, elevator reader, energy saver, safe, car parking reader, time attendance, consumption system, staff management system etc.
Stand-alone intelligent lock without cable connection, made up of intelligent card, intelligent lock and management software.

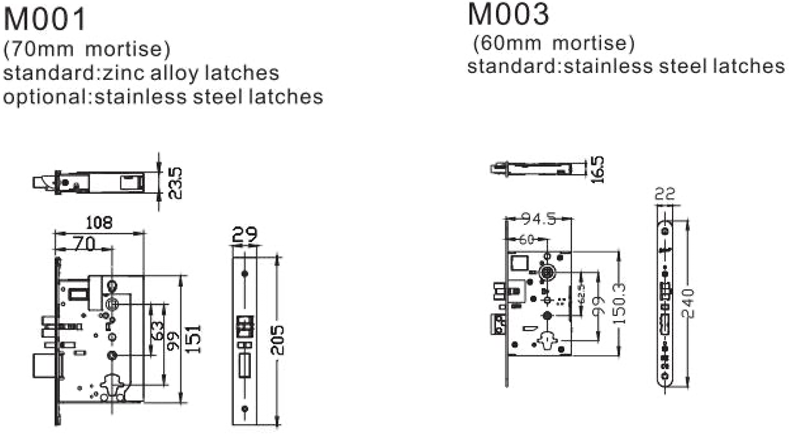

Using ANSI standard 5-latch M001 mortise or Slim M003 mortise, latches can be stainless steel according to customer’s requirement, safe and reliable.
Low power waste, the static current can be ignored. The lock can be used for more than 1 year normally with 4pcs AA Alkaline（LR6） batteries.
Alarm function: alarm works for improperly door closing, low battery voltage, or someone pastes the latches purposely,
Can be set as a Passage Lock (normal opening state), especially for conference.
Advanced backup system: special functional card to issue temporary guest card to avoid the inconvenience caused to customers and the chaos for management.
Equipped with mechanical key for double security.
Wide application range: can be installed on wooden or metal door whose thickness >= 38 mm (M001 mortise), >= 35 mm (M003 mortise).
Power Supply: DC4.5 V-6.5V, 4pcs 1.5V LR6 alkaline batteries;
Static Current: < 30μA; Dynamic Current: <150mA;
Store Temperature: -20~+80°C; Store Humidity: 10~90% RH;
Working Temperature: -10~+60°C; Working Humidity: 15~90% RH;
Working Frequency: 13.56MHz
Card reading distance: 0-35mm;
Unlocking Time: Turning the handle to open the door after reading the card, if doesn’t
turn handle within 3 seconds, the door will be locked again automatically.
Low Voltage Warning: When working voltage is less than 4.8V, indicator will be in red and buzzer sounded while unlocking. The lock can still be opened about 100 times before batteries are replaced.
