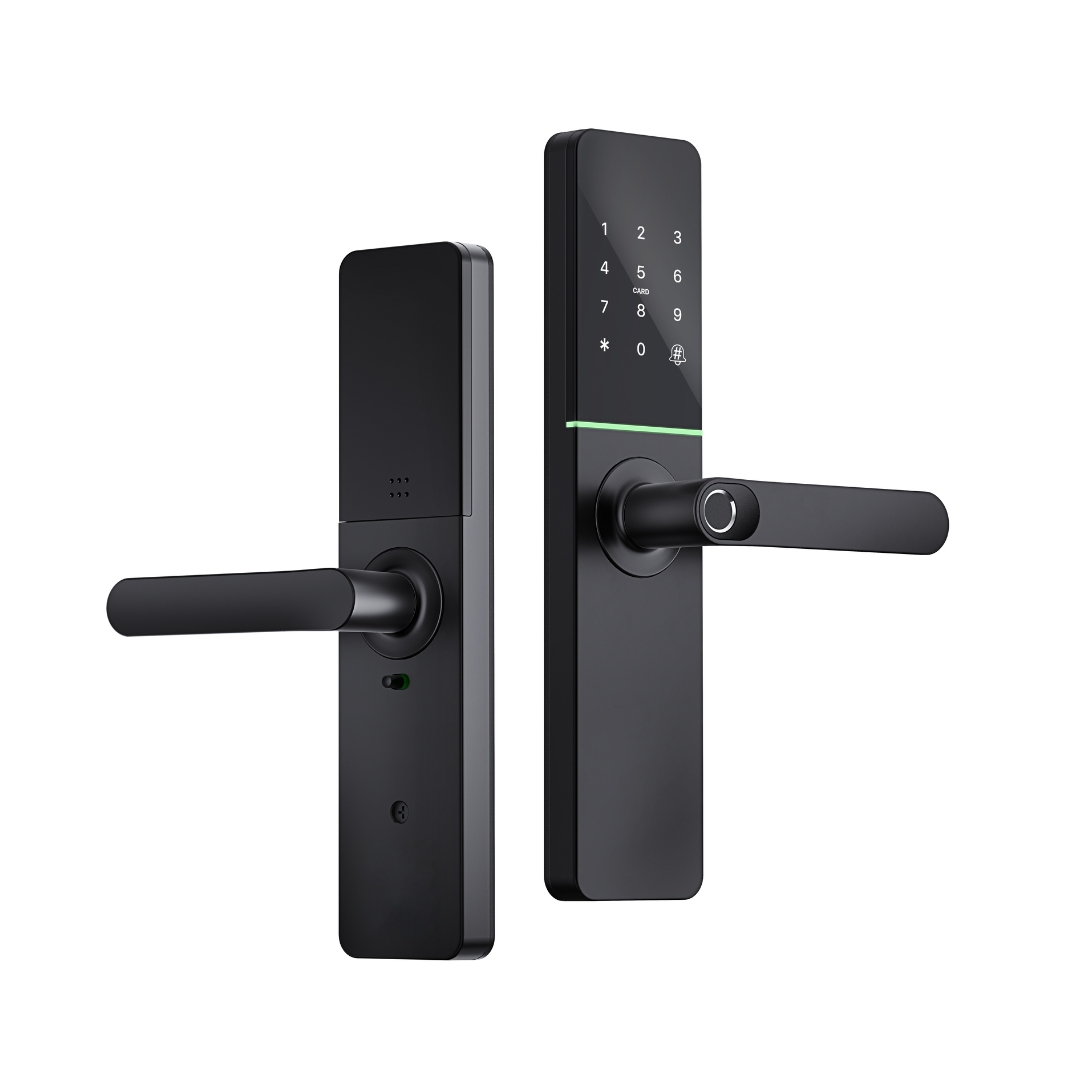

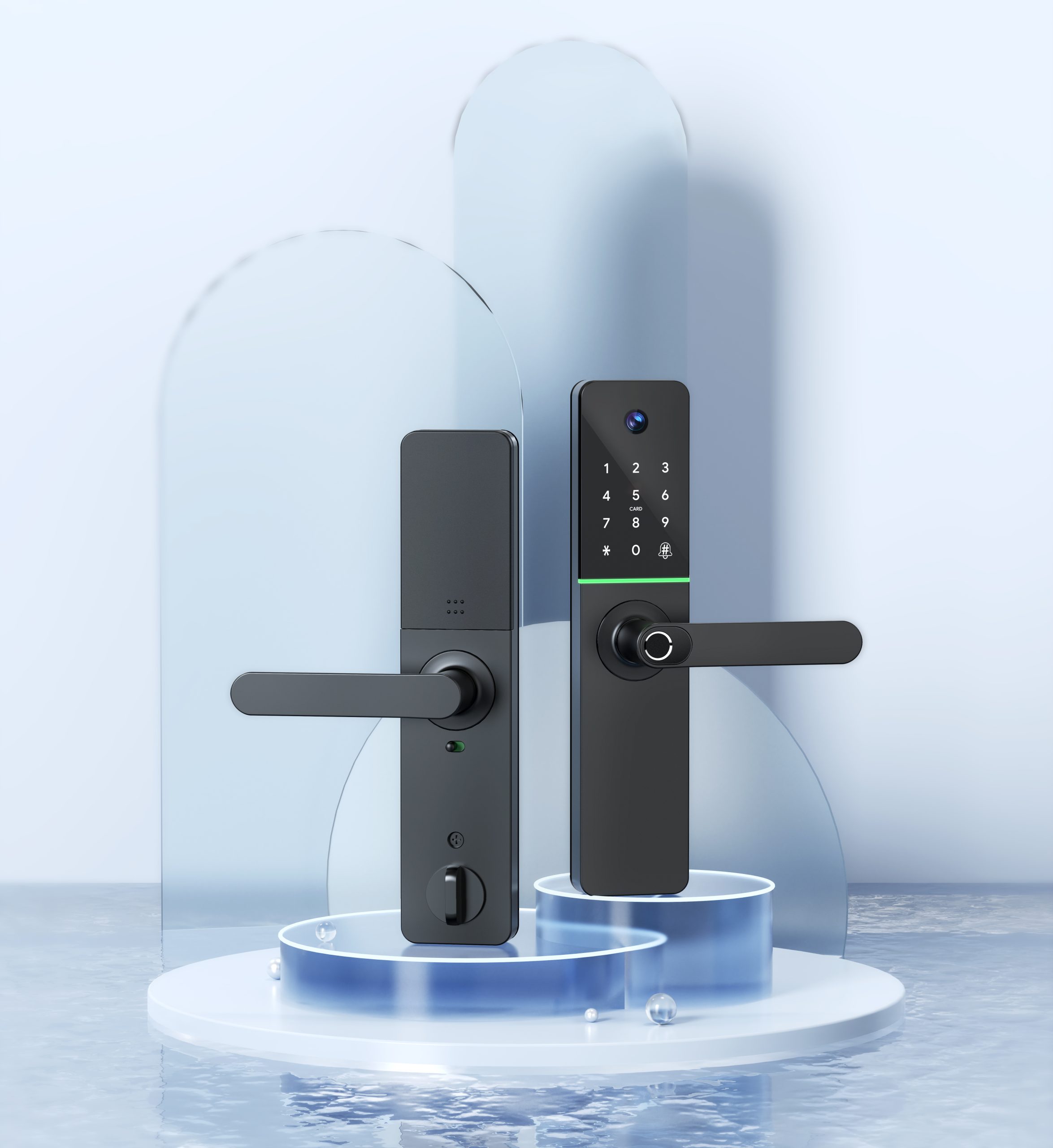

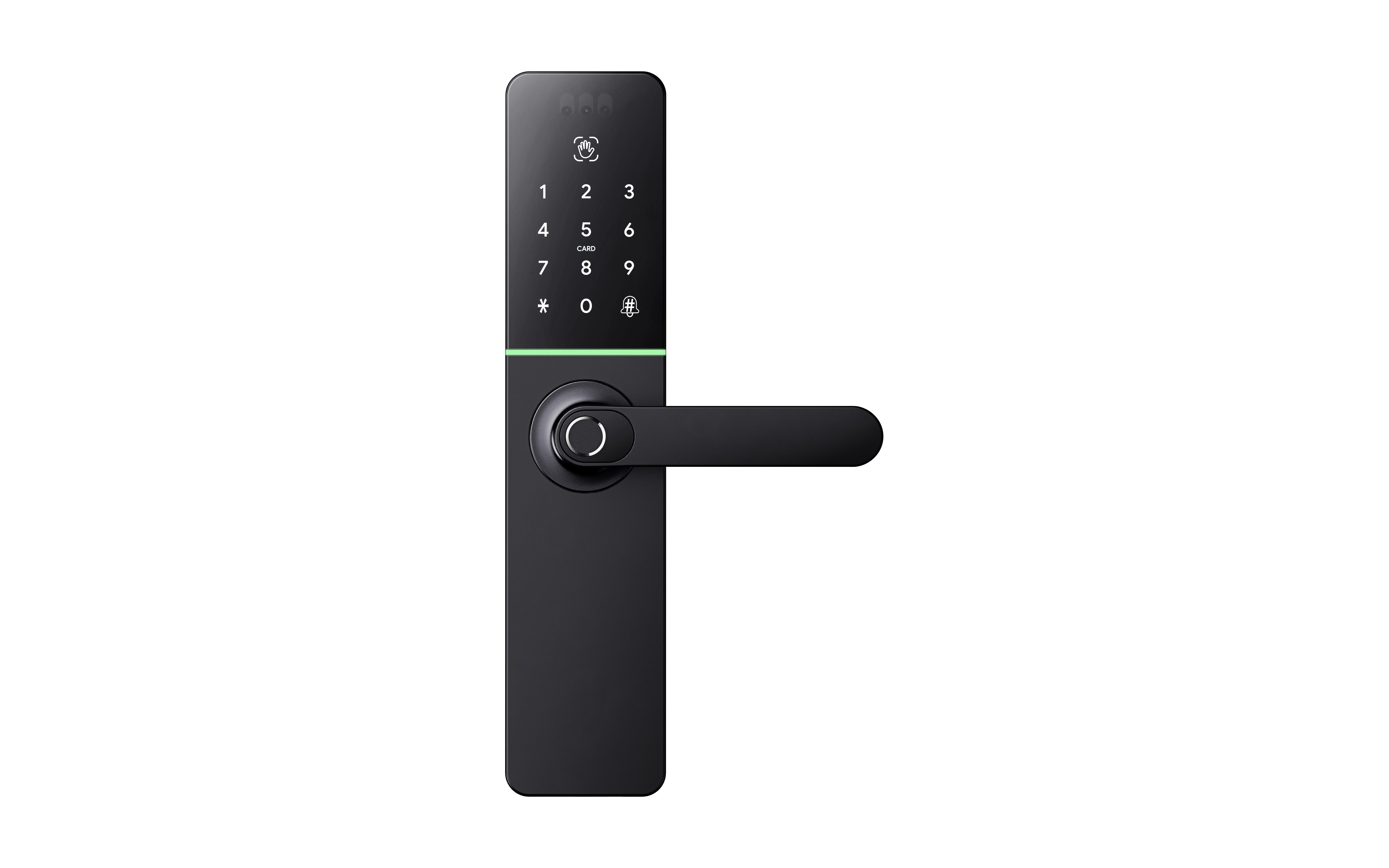

Intego Residential Lock – EL800-MDTH91B

SPECIFICATION:

• ITG-EL800-MDTH91B
  Unlocking ways to access:

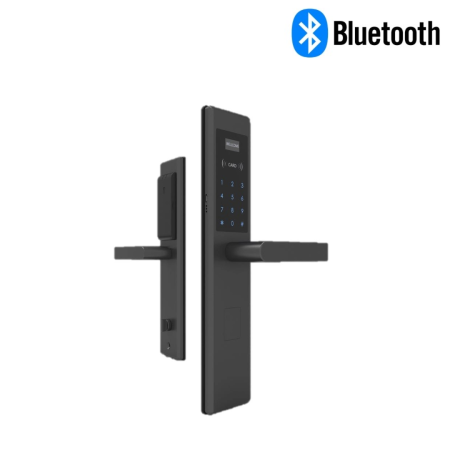

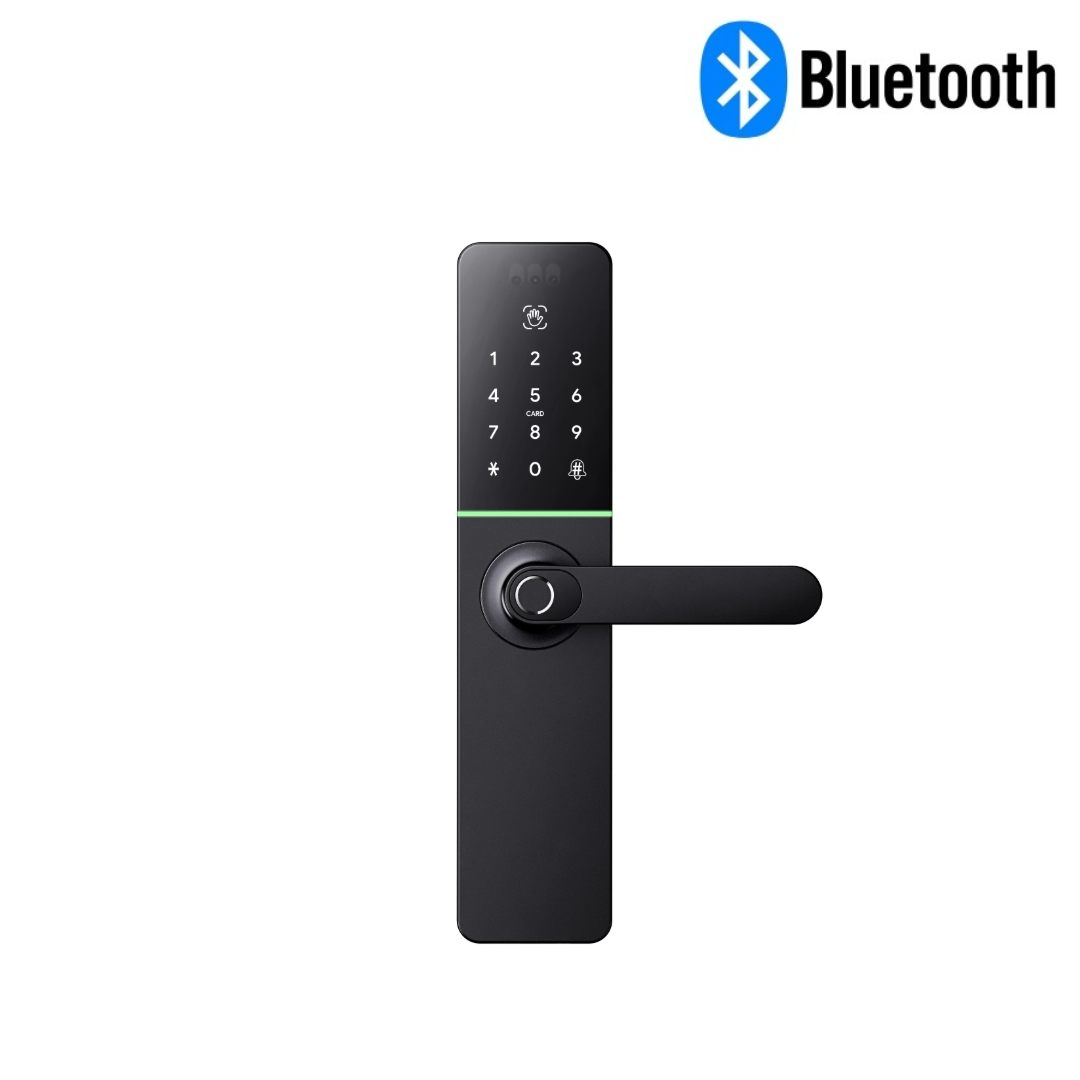

  Fingerprint / Touch Keypad / RFID card / Mechanical Key / Mobile Access (Bluetooth) Optional: Wi-Fi / Face ID / Palm Vein

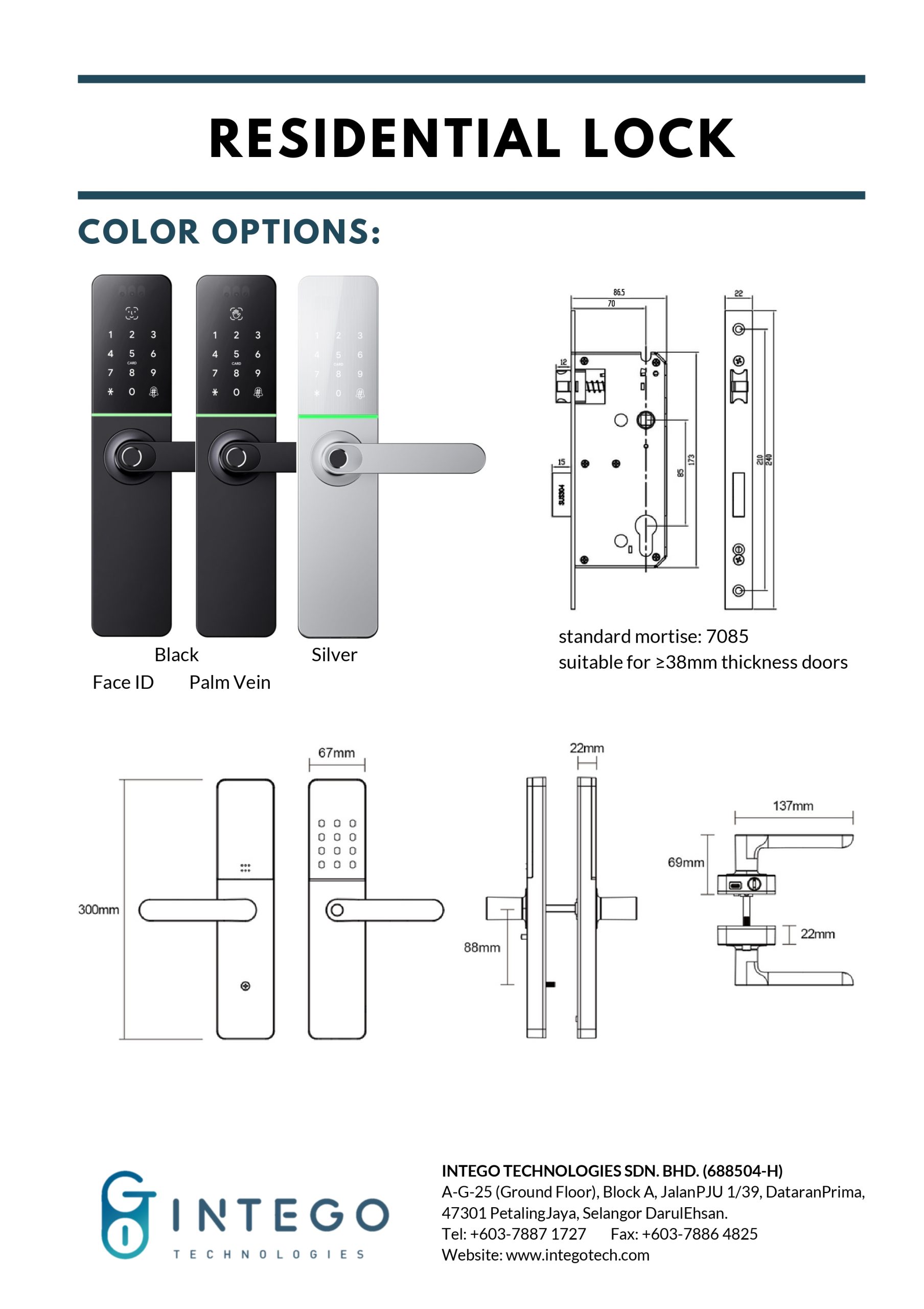

• Lock Dimension: 300mm(H)*67mm(W)*22mm(D)
• Material: Aluminum Alloy

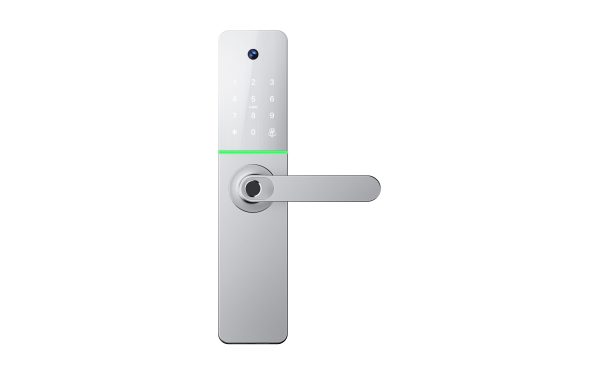

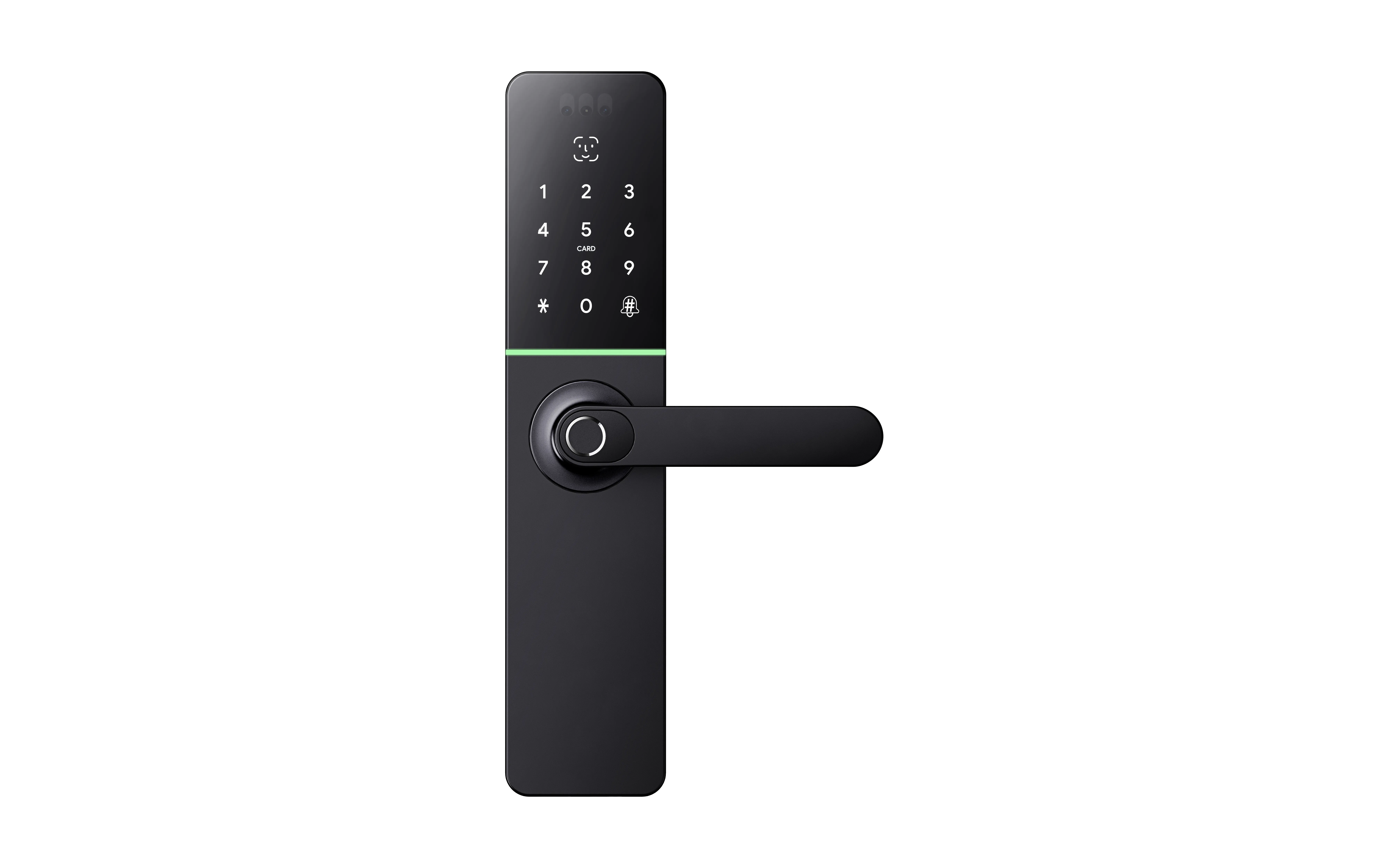

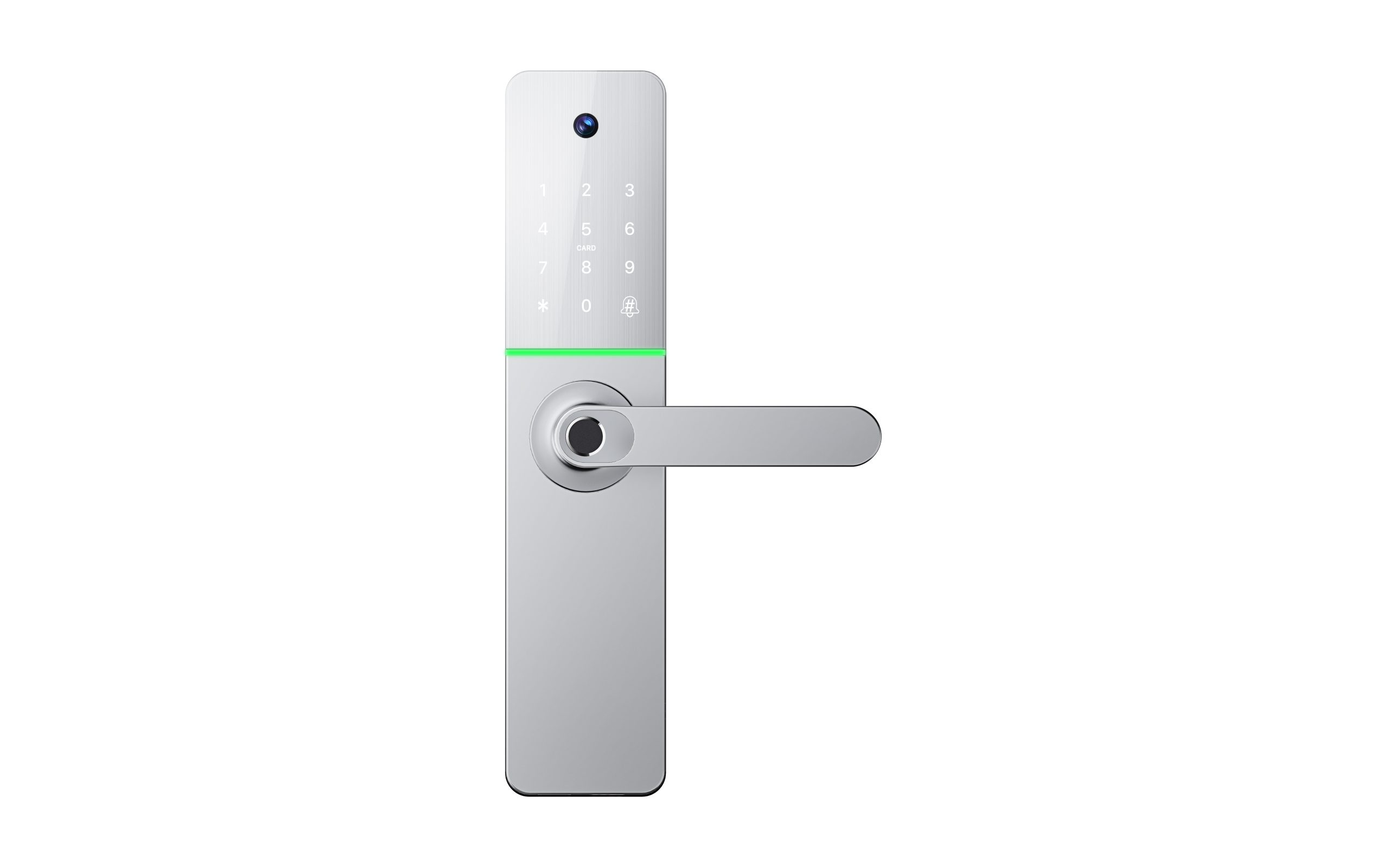

• Color: Black / Silver
• Password length: 4-9 digits
• Password capacity: 150
• Card capacity: 200
• Fingerprint capacity: 200
• Privacy Mode: Yes
• Door thickness: 38-65mm
• Opening records: Latest 1000 records
• English voice instructions for setting
• Working Temperature: -20℃ ~ 55℃
• Working Humidity: 0% ~ 95%
• Power Supply: DC4.8
• V-6V, 4pcs 1.5V LR6 AA alkaline batteries
• External Type C USB port of 5v power supply
• Static Current: < 10μA; Dynamic Current: <120mA

Face ID & Palm Vein Spec for Battery

• V-7.4V, Lithium batteries
• Battery capacity: 4200mAh
• Charging voltage: 5V/2A
• Current: <250mA
