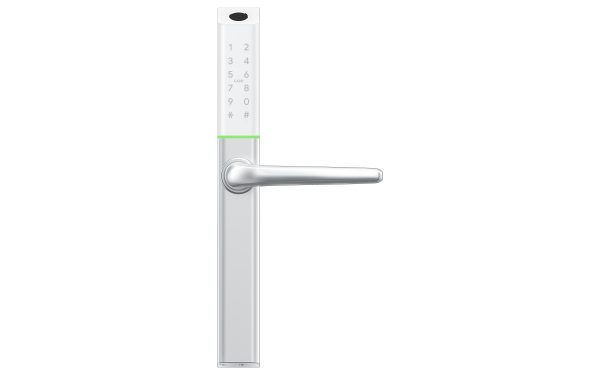

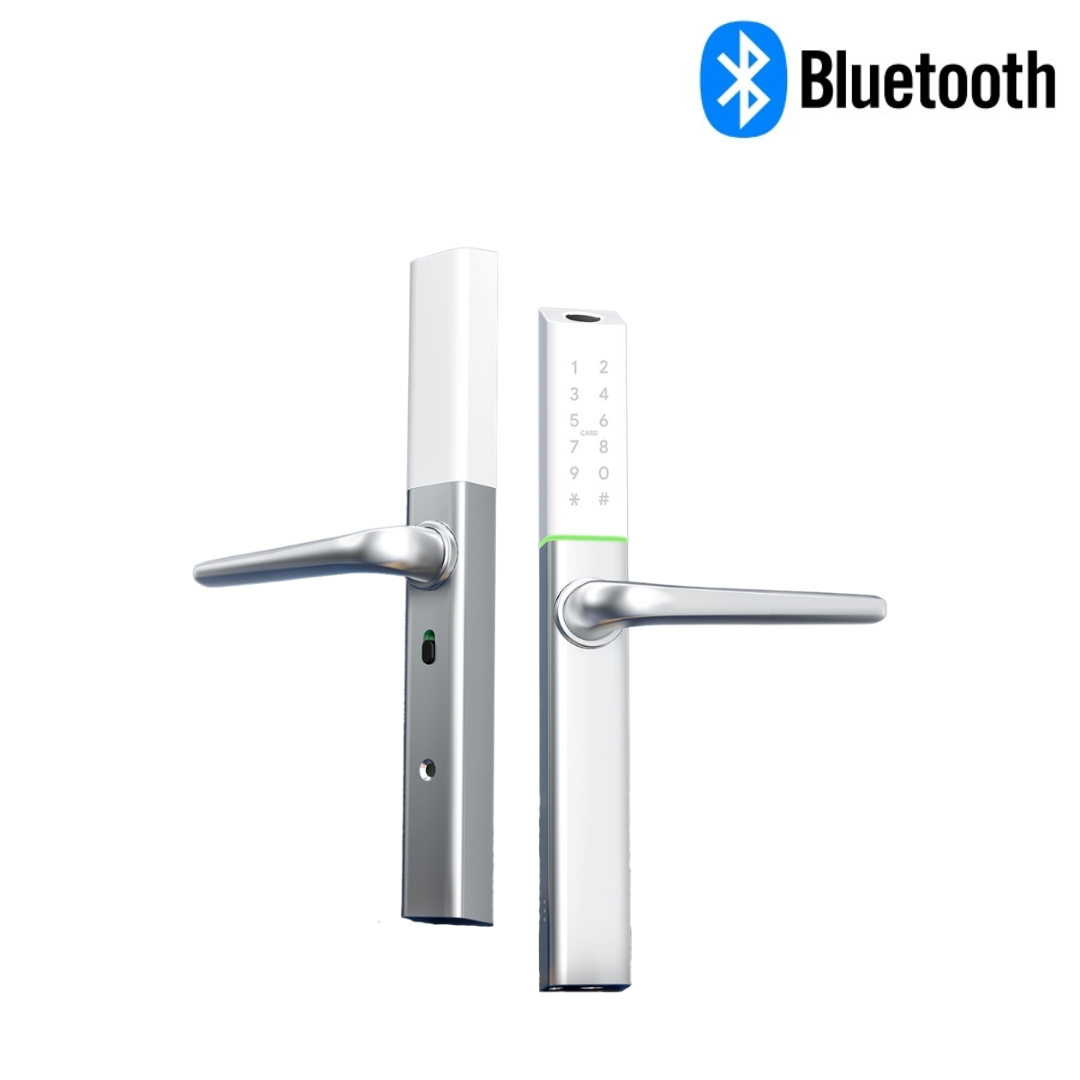

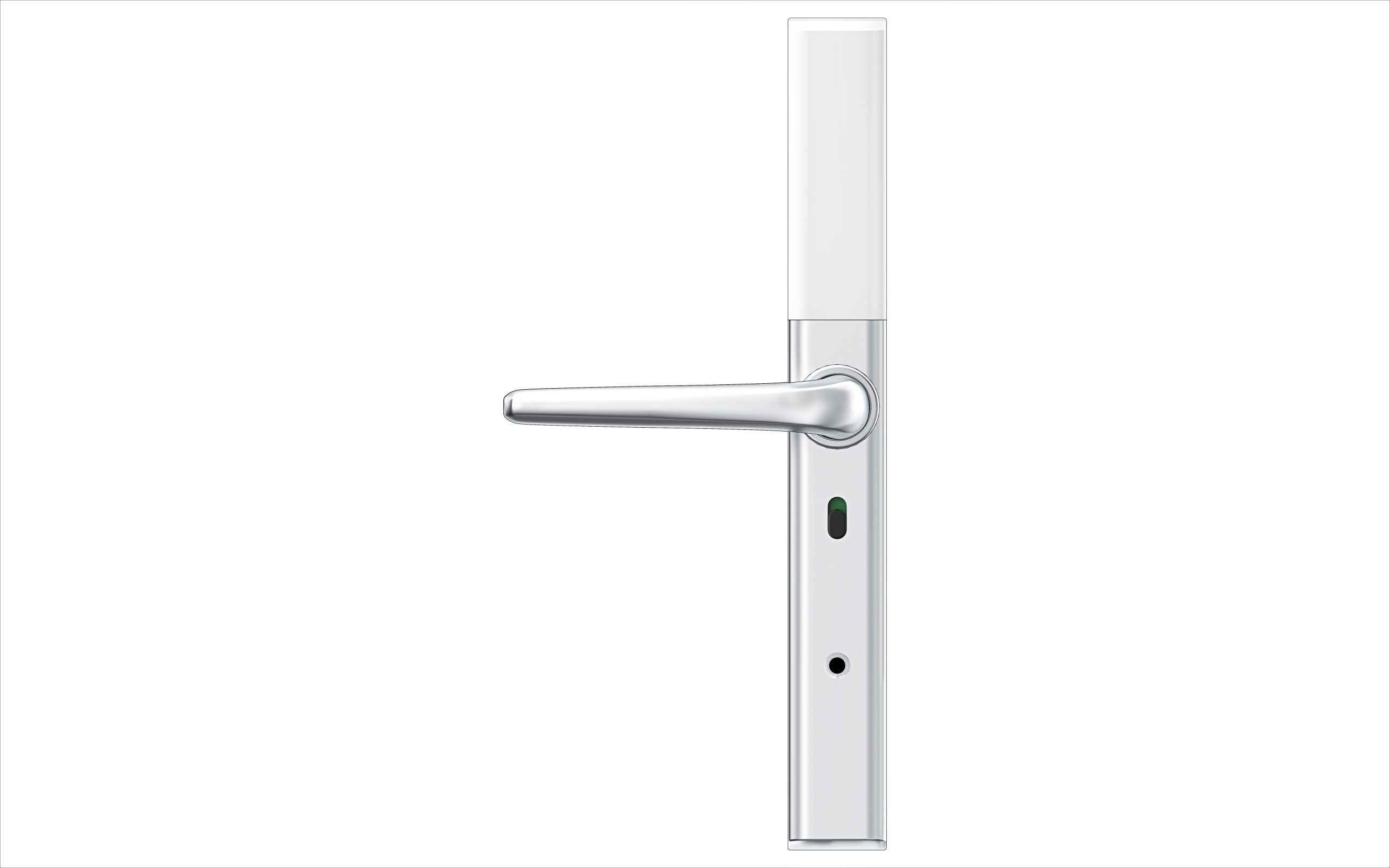

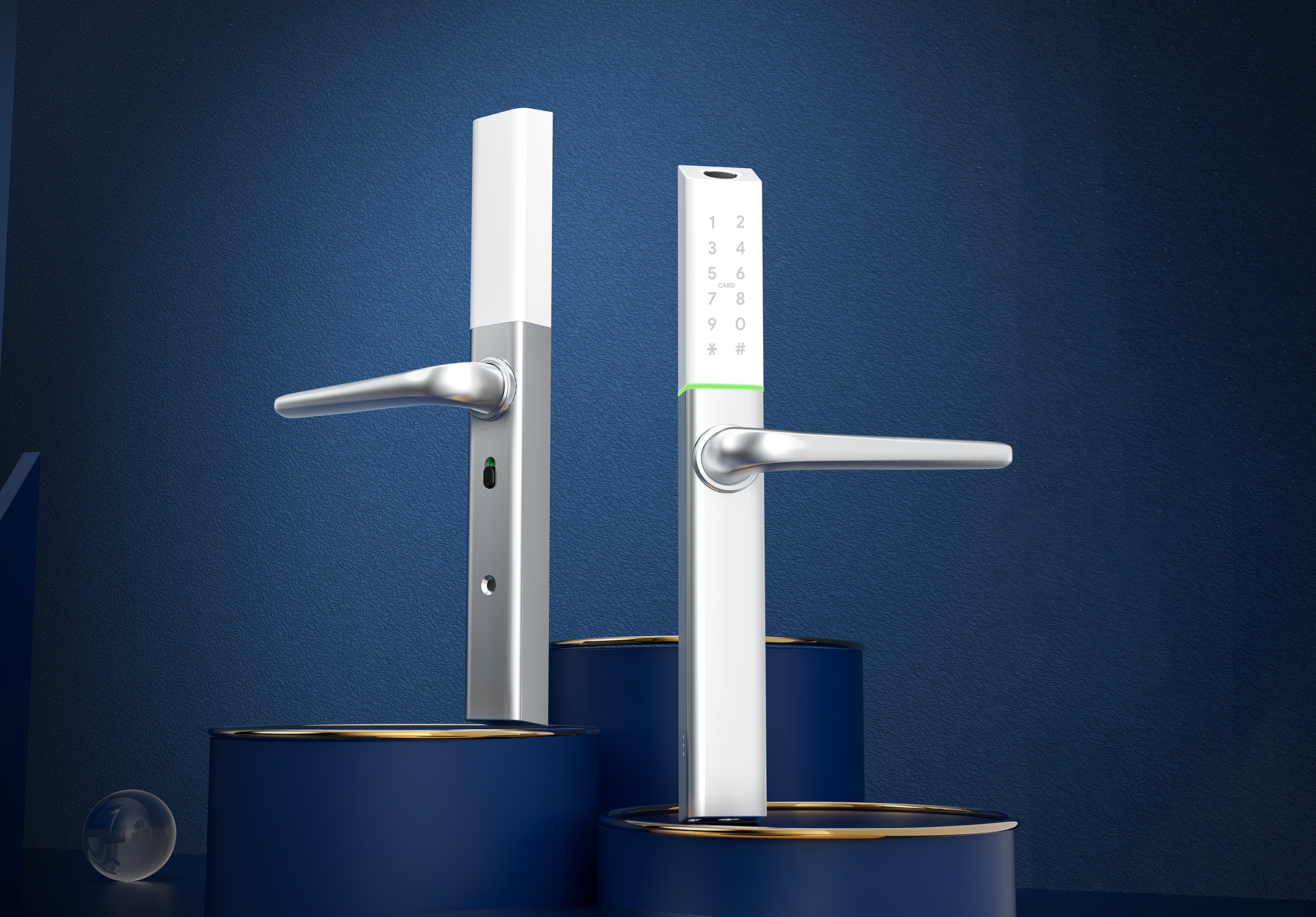

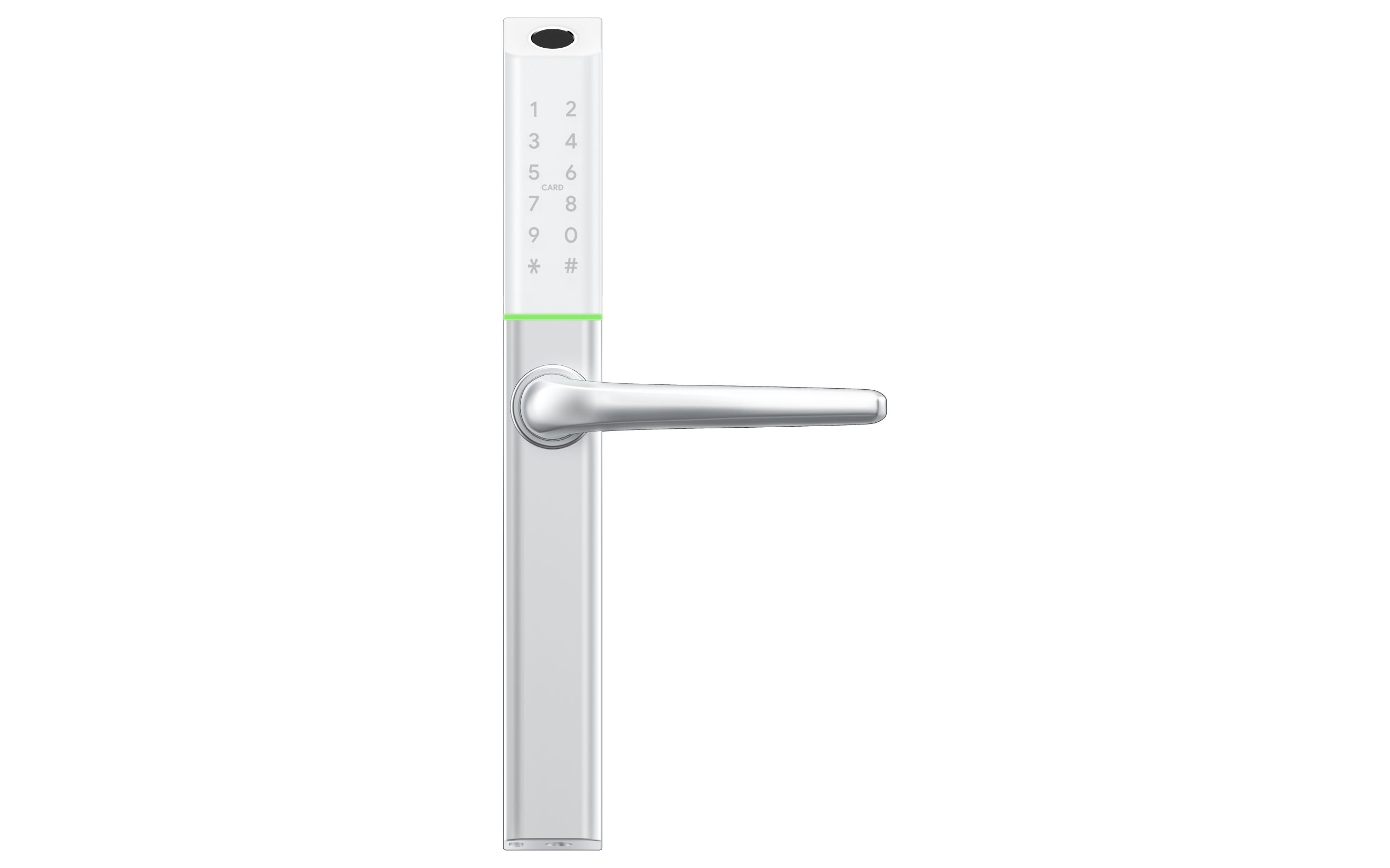

Intego Residential Lock – EL800-MDTS3

SPECIFICATION:

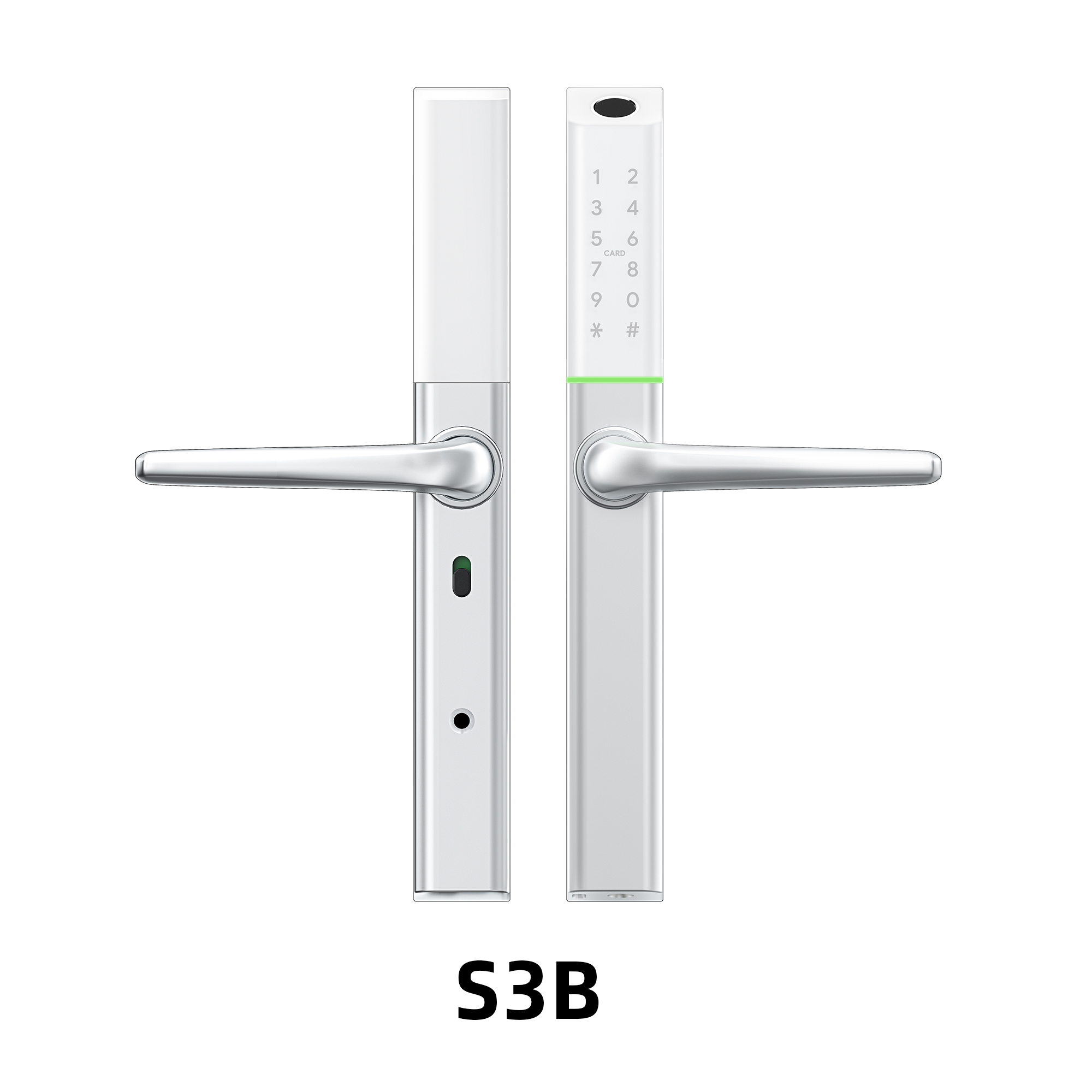

• ITG-EL800-MDTS3B
  Unlocking ways to access:
  Fingerprint / Touch Keypad / RFID card / Mechanical Key / Mobile Access (Bluetooth) Optional: Wi-Fi
• Lock Dimension: 280mm(H)*33mm(W)*22mm(D)
• Material: Aluminum Alloy
• Color: Black / Silver
• Password length: 4-9 digits
• Password capacity: 150
• Card capacity: 200
• Fingerprint capacity: 200
• Privacy Mode: Yes
• Door thickness: 38-65mm
• Opening records: Latest 1000 records
• English voice instructions for setting
• Working Temperature: -20℃ ~ 55℃
• Working Humidity: 0% ~ 95%
• Power Supply: DC4.8
• V-6V, 4pcs 1.5V LR3 AAA alkaline batteries
• External Type C USB port of 5v power supply
• Static Current: < 10μA; Dynamic Current:<120mA
• Available Mortise: 2885, 2885 (double hock), 3085, 3585, 4585, 5085, 6085, 7085
• Suitable: Fire-rated door, Aluminum door, Grill door, Sliding door.
