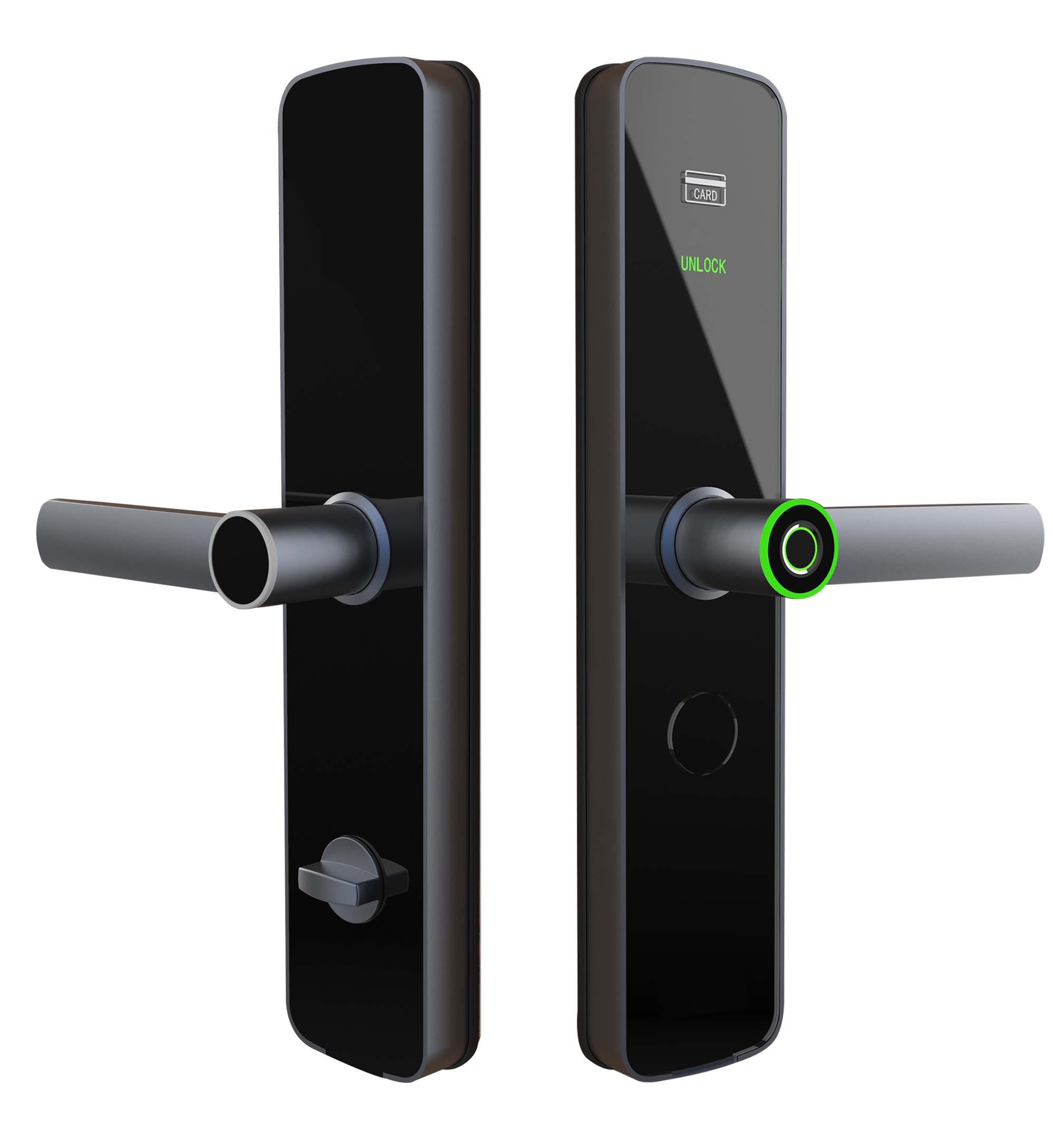

Intego Residential Lock – EL800-MDTLV701


  • ITG-EL800-MDTLV701
    Four ways to access:
    Fingerprint / Touch Keypad / RFID card / Mechanical Key

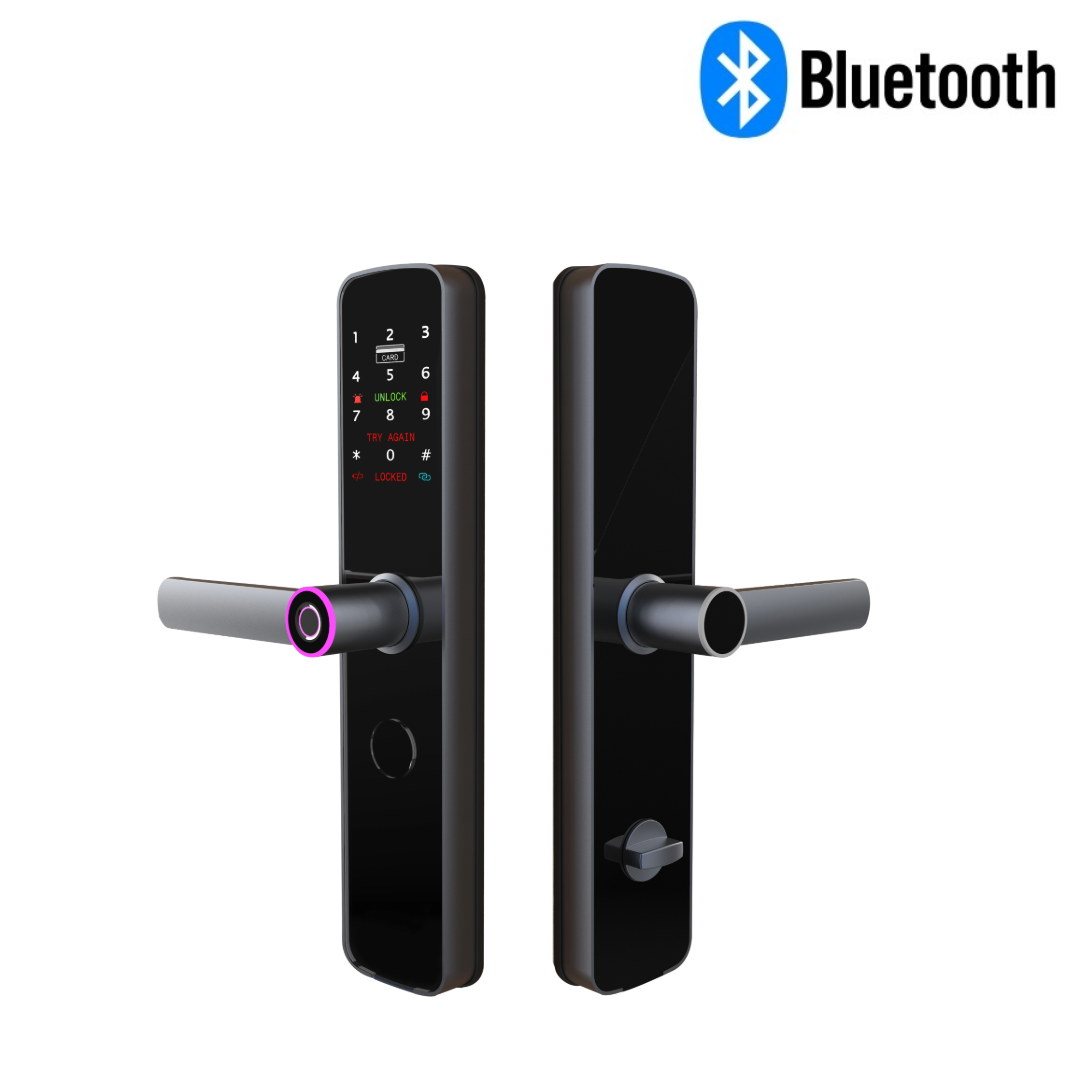

    Five ways to access:
    Fingerprint / Touch Keypad / RFID card / Mechanical Key / Mobile Access (Bluetooth)
  • Fashion and Elegant Design
  • Material: Zinc Alloy
  • Password length: 6 digits
  • Password capacity: 10
  • Virtual password: Yes
  • Virtual password: 30 digits
  • Maximum 30 digits can be input for protecting the correct code unexposed.
  • Card capacity: 100
  • Door thickness: 38-60mm Pearl matte black finishing
  • Opening records: Latest 1000pcs
  • English voice instructions for setting
  • High strength 2.0mm thickness SUS304 plate.
  • 12mm thickness for lock panel
  • High security with hidden cylinder
  • High security with stainless steel deadbolt
  • SUS304 panels and handles with fire-proof and anti-rust performance.
  • Power Supply: DC4.8
  • V-6.5V, 4-8pcs 1.5V LR6 alkaline batteries
  • External USB port of 5v power supply Static Current: < 10μA; Dynamic Current:<120mA


  • Chip: Philips Mifare 1K S50
  • Eeprom size: 8Kbit, 16 sections to write different data
  • Working Frequency: 13.56 MHz
  • Communication speed: 106KBoud
  • Working Temperature: -20℃〜55℃
  • Read-write life-span: >100,000 times
  • Data keeping: >10 years
  • Material: PVD
  • Standard: ISO14443A
