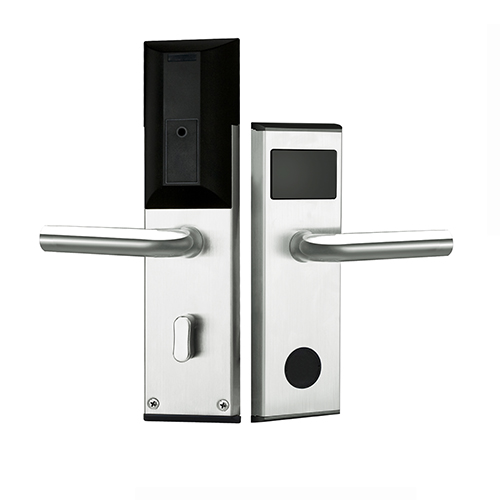

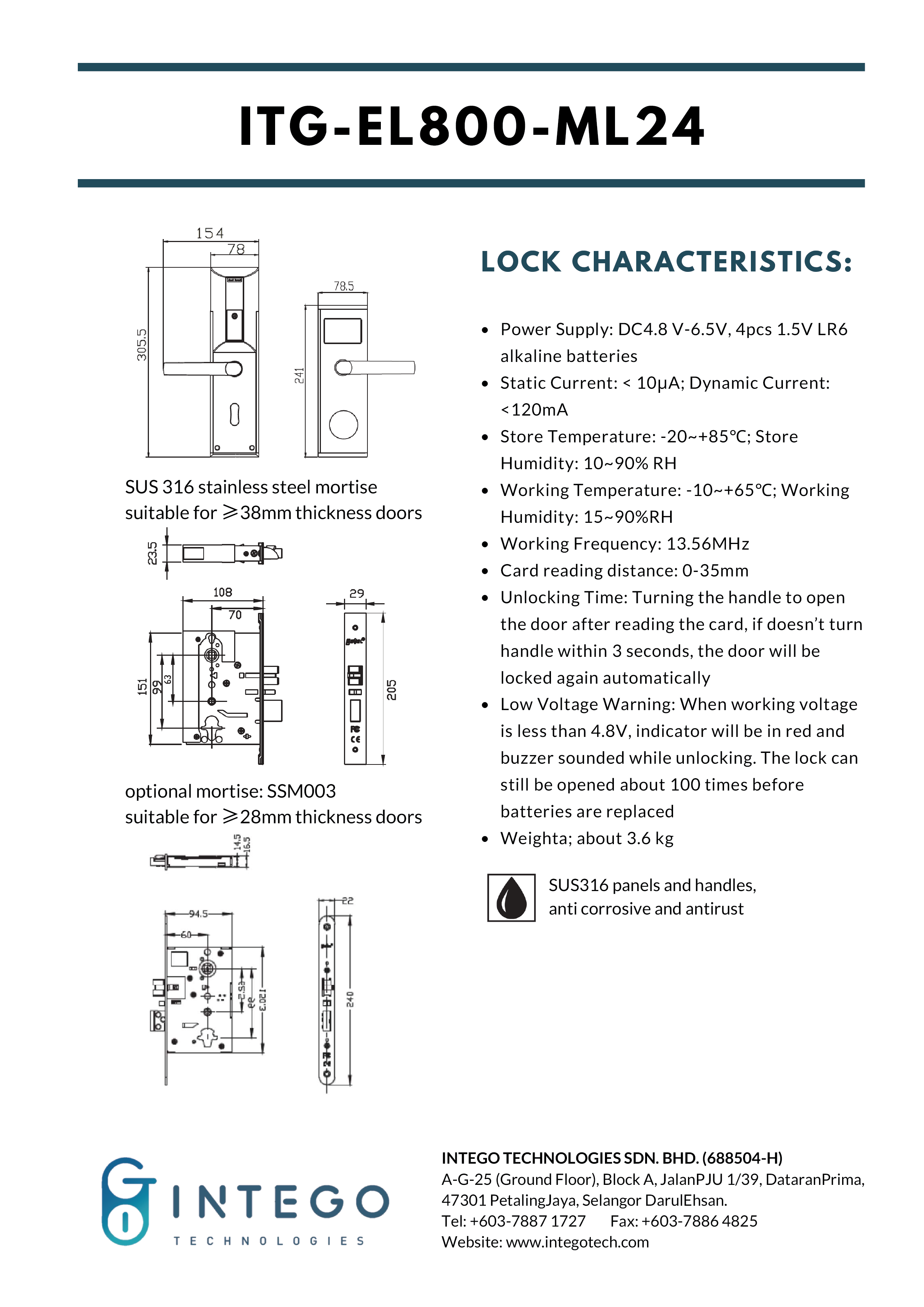

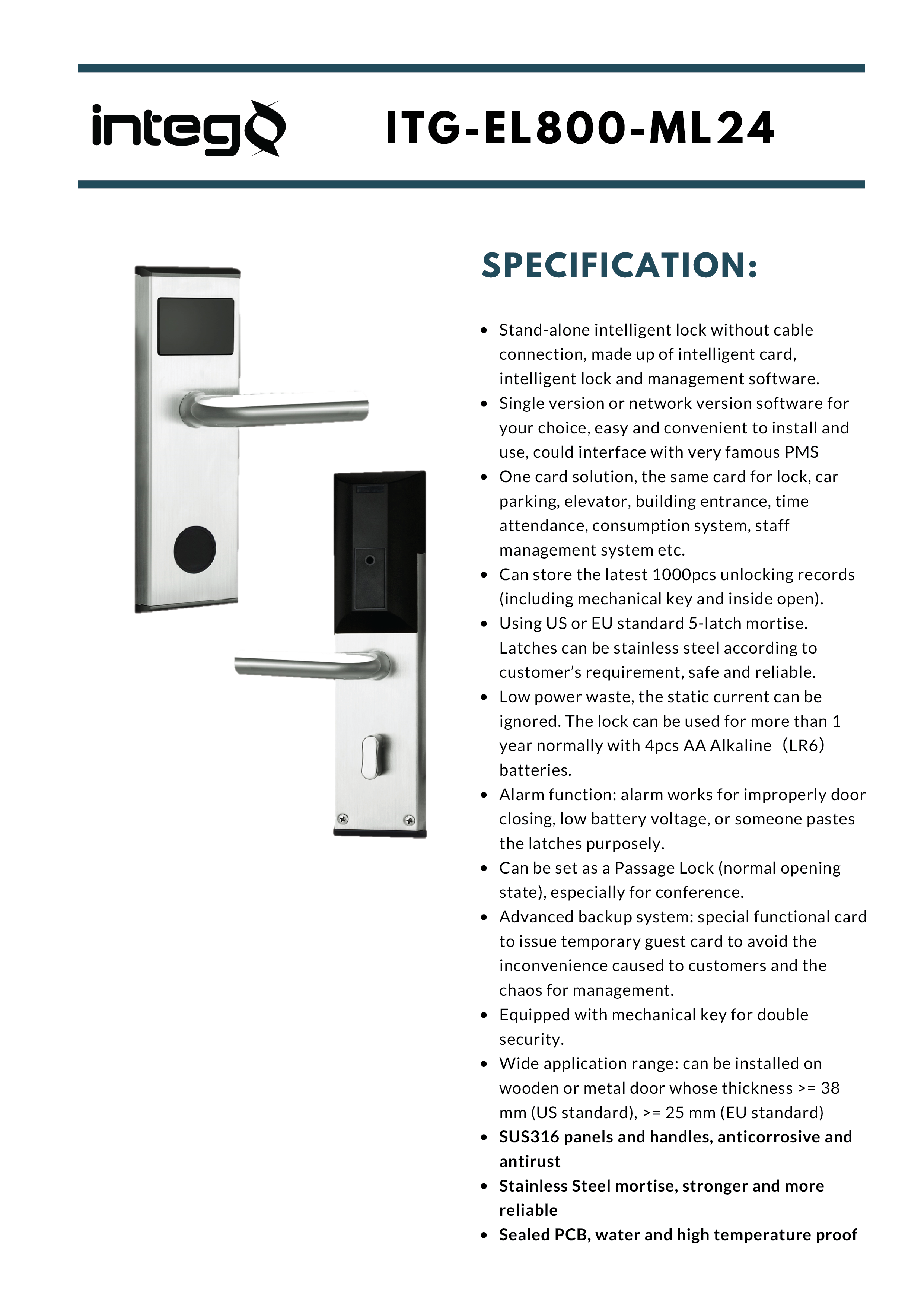

Intego Hotel Lock – ITG-EL800-ML24


  • Stand-alone intelligent lock without cable connection, made up of intelligent card, intelligent lock and management software.
  • Single version or network version software for your choice, easy and convenient to install and use, could interface with very famous PMS.
  • One card solution, the same card for lock, car parking, elevator, building entrance, time attendance, consumption system, staff management system etc.
  • Can store the latest 1000pcs unlocking records (including mechanical key and inside open). Using US or EU standard 5-latch mortise. Latches can be stainless steel according to customer’s requirement, safe and reliable.
  • Low power waste, the static current can be ignored. The lock can be used for more than 1 year normally with 4pcs AA Alkaline LR6 batteries.
  • Alarm function: alarm works for improperly door closing, low battery voltage, or someone pastes the latches purposely.
  • Can be set as a Passage Lock (normal opening state), especially for conference.
  • Advanced backup system: special functional card to issue temporary guest card to avoid the inconvenience caused to customers and the chaos for management.
  • Equipped with mechanical key for double security.
  • Wide application range: can be installed on wooden or metal door whose thickness >= 38 mm (US standard), >= 25 mm (EU standard) SUS316 panels and handles, anticorrosive and antirust
  • Stainless Steel mortise, stronger and more reliable
  • Sealed PCB, water and high temperature proof


  • Power Supply: DC4.8 V-6.5V, 4pcs 1.5V LR6 alkaline batteries
  • Static Current: < 10μA; Dynamic Current: <120mA
  • Store Temperature: -20~+85°C; Store Humidity: 10~90% RH
  • Working Temperature: -10~+65°C; Working Humidity: 15~90%RH
  • Working Frequency: 13.56MHz
  • Card reading distance: 0-35mm
  • Unlocking Time: Turning the handle to open the door after reading the card, if doesn’t turn handle within 3 seconds, the door will be locked again automatically
  • Low Voltage Warning: When working voltage is less than 4.8V, indicator will be in red and buzzer sounded while unlocking. The lock can still be opened about 100 times before batteries are replaced
  • Weighta; about 3.6 kg
